COSINA CT1 super* and Yashica FX-3 super 2000

The "perfect normal", generic SLRs

Cosina started as a camera producer in 1973, concentrating on manual SLR cameras for the warehouse and mass market. They were sold under varied names. They were cheap, but sturdy cameras for people who didn't care about names like Nikon, Canon, Pentax, leave away Leica, but want a inexpensive tool for simply taking photographs. They had everything what was needed for it, and since they were low-priced, included no specials, no automatic exposure and no autofocus (which was in its infancy anyway). Most of them were M42 and later K-mount, except these models made for Nikon, Olympus,... and Yashica/Zeiss? I don't know.


The Cosina CT1 super* was the last of this series, introduced 1986. It has one special feature, the 1/2000s. This was because the Copal sectional shutter had it at some stage. The Copal CCS (CCS-M) was one of the best focal plane shutters of this era: Fast (synch speed 1/125s), reliable, long-lived, serving at all conditions and temperatures, not particular quiet, but quieter than most other metal plane shutters. Consequently, it was built-in a lot of cameras of this era by most of the big camera makers, and also Cosina. From about 1985 the 1/2000s became standard. For the Bessa rangefinder camera, a front curtain (light grey) need to be added to increase light tightness, because of the lacking mirror.

The Cosina CT1
          super* opened

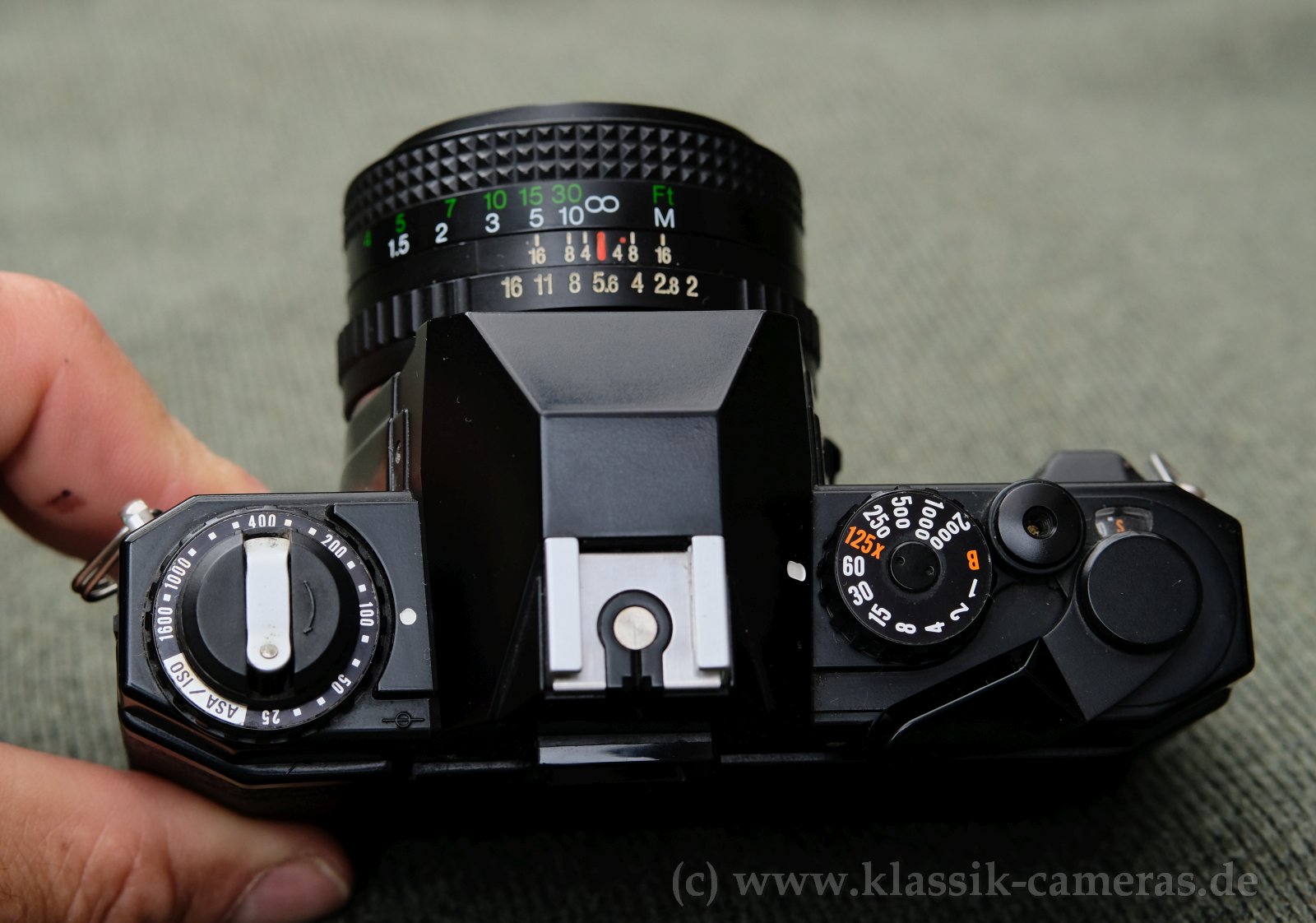

The Cosina CT1
All of the controls and dials were at common places where to expect them to be. The lens design was an old (discontinued license) Zeiss Planar, like used by most other lower-class lens makers. Size of the body is 133 x 85 x 50mm, which is hardly distinguish-able from the SLR small size standard set by Pentax ME (131 x 82,5 x 49,5).

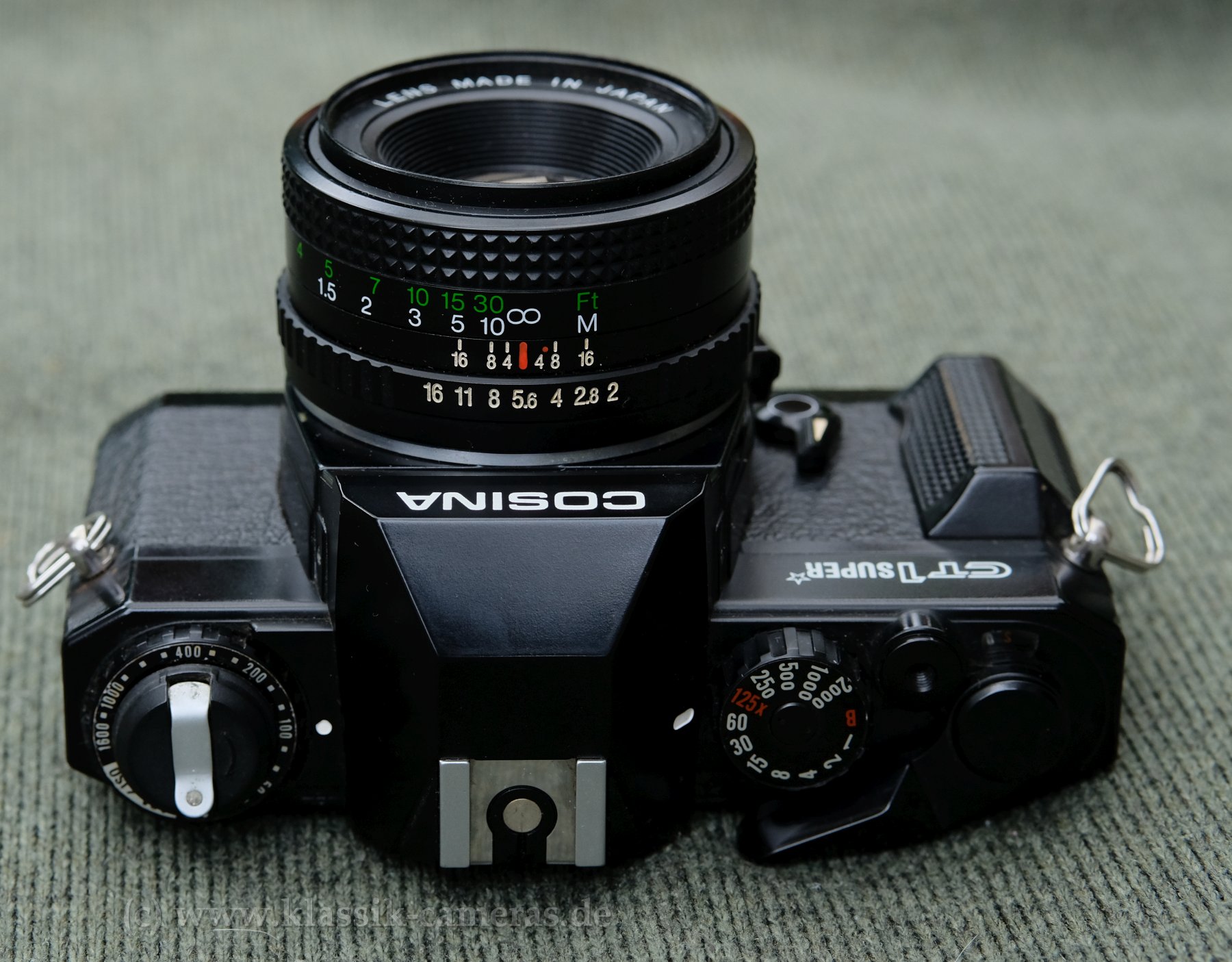

The Cosina CT1
In the decade earlier (1970's) the Cosina SLR cameras were much larger, bulgier, quite crude, like designed to handle with builders gloves - quite the opposite to the full-mechanical, cloth-shutter, precision masterpiece of a PENTAX MX - which was abandoned without replacement. The 1980's Cosina CT1 super was quite a compromise between these extremes - probably easier to handle for people with average sized hands.

The Cosina CT1
          super* lens mount
The "Super Star" was the last of the series with sleeker prism than previous models.

CT1 on a scale
On a scale. Lightweight at 416 gramms, because of simplicity of design, and outher shells made of plastic. That's really low for a 35mm SLR. But it don't feel weak in hands.
-- The Pentax K1000 was often captioned as a "students camera", means a simple, reliable camera to learn all the basics of photography including lots of cheap lenses available.
That's all as true for the Cosina CT1 Super Star, plus it's smaller, easier to handle, and weight's 1/3 less.

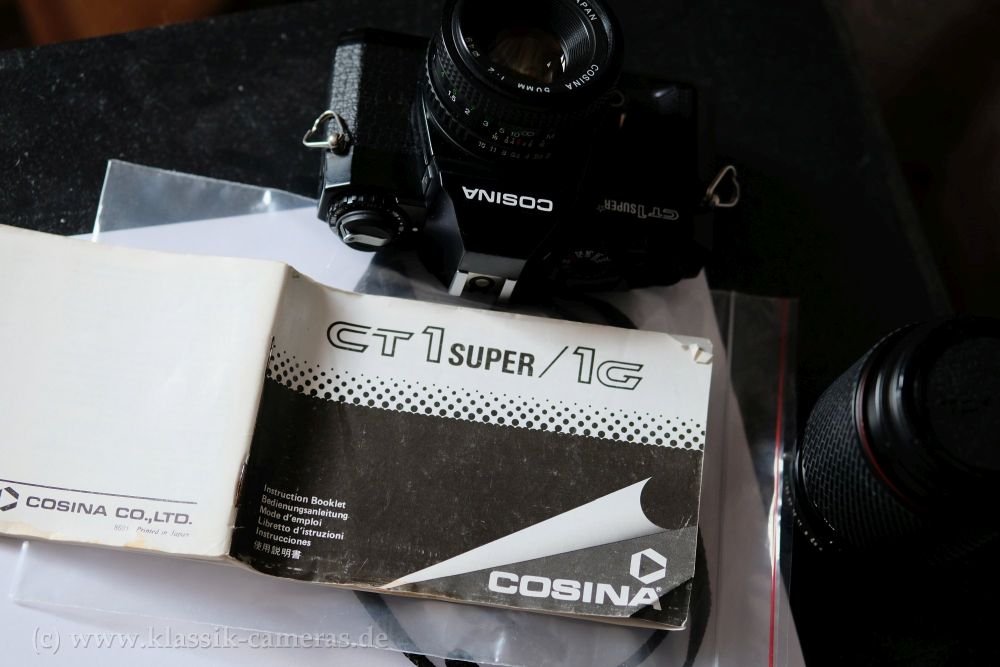

The Cosina CT1
            super* with manual
Sold as a "Carena" by Photohaus Porst Köln according to original bill.

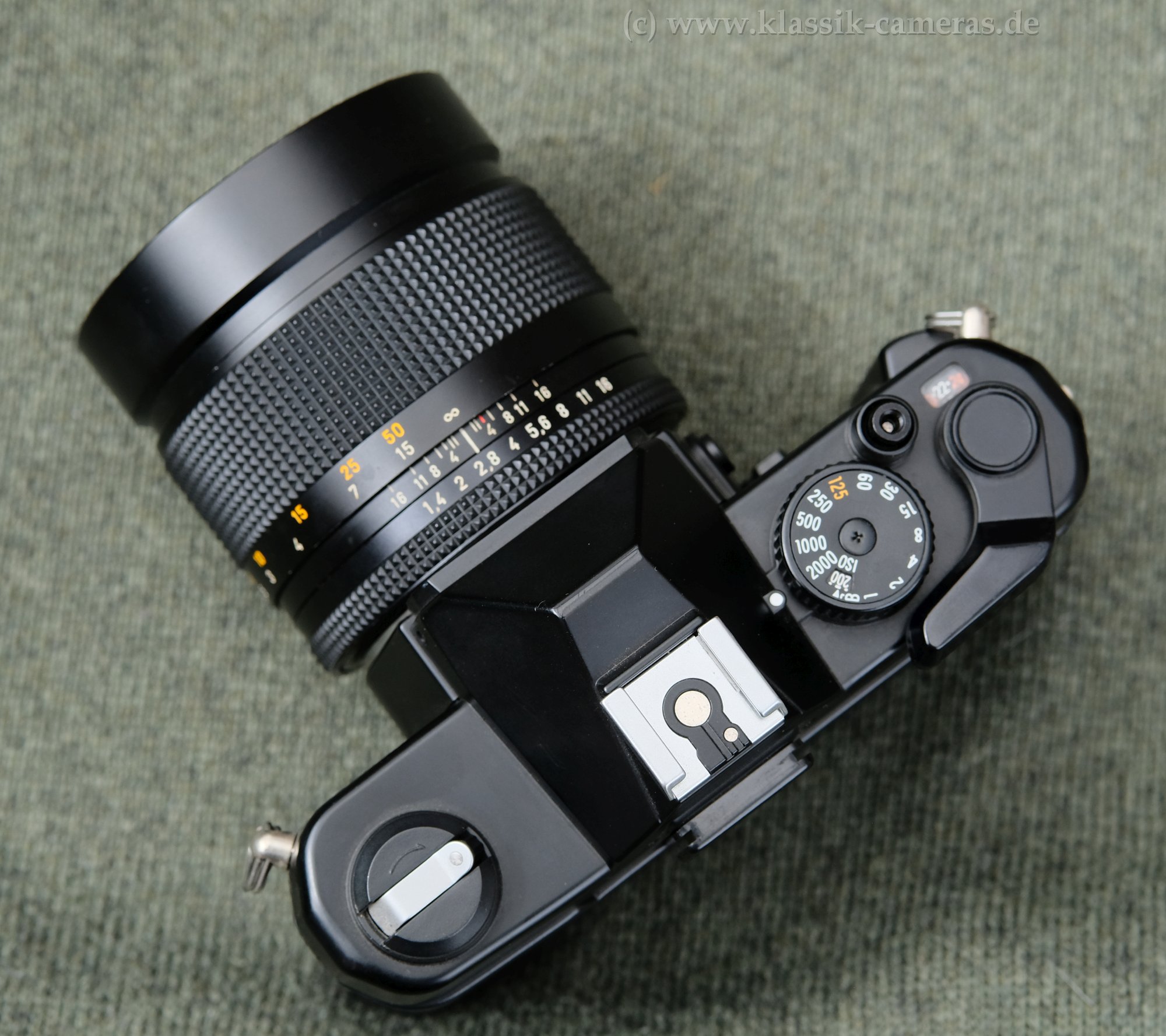

Yashica FX-3 super

Now to a slightly different beast of the same era (about 1986), the Yashica FX-3 super, shown here with the incredible Zeiss Planar 85/1.4 ...

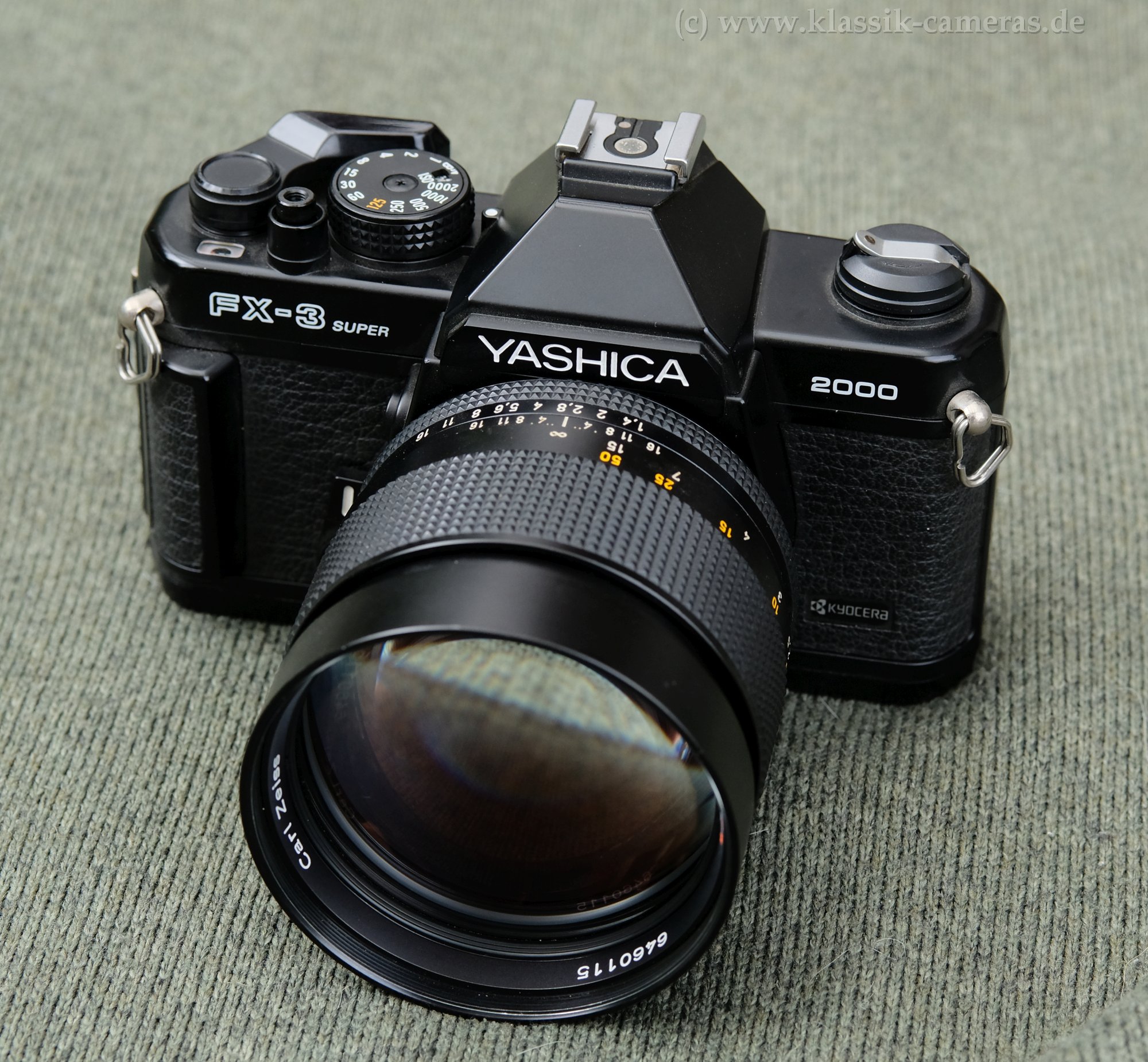

Yashica FX-3
            with Zeiss Planar 85/1.4
Yashica produced the CONTAX RTS in C/Y-mount, a high-priced, professional grade SLR, introduced in 1975 with tons of marketing effort paid by Zeiss, and the not less great the CONTAX 139 - mid-range, aperture priority, with electronic shutter (a Seiko MFC-E), introduced in 1979. A low-priced fully-mechanical C/Y-mount camera was also introduced, the Yashica FX-1 (1975), FX-2 (1976), followed by a much more compact FX-3 (1979) which eventually evolved to the FX-3 Super 2000 (1986)

Yashica FX-3 super
You may notice that the ISO-dial isn't at the same place as it is on the CT1 super.  Finder view (positions of metering LEDs) is different with both cameras too. A very basic, three LED's, showing overexposure above (red), correct exposure in the middle (green), and underexposure on bottom (red). The CT1 super has the LED bar on the left, FX3 Super on the right side and less protruding into the image. Metering is performed by two Cadmium Sulfide (CdS) cells in the Cosina CT1 super, cheaper and not as precise in low light than the more sensitive Silicone Photo Diodes (SPD) on the FX-3 super. (The Bessa cameras all had SPD cells and were well known for metering precision).  They are all working with a set of two LR44 or SR44 cells. Prism finder field of view is about 92% with both.

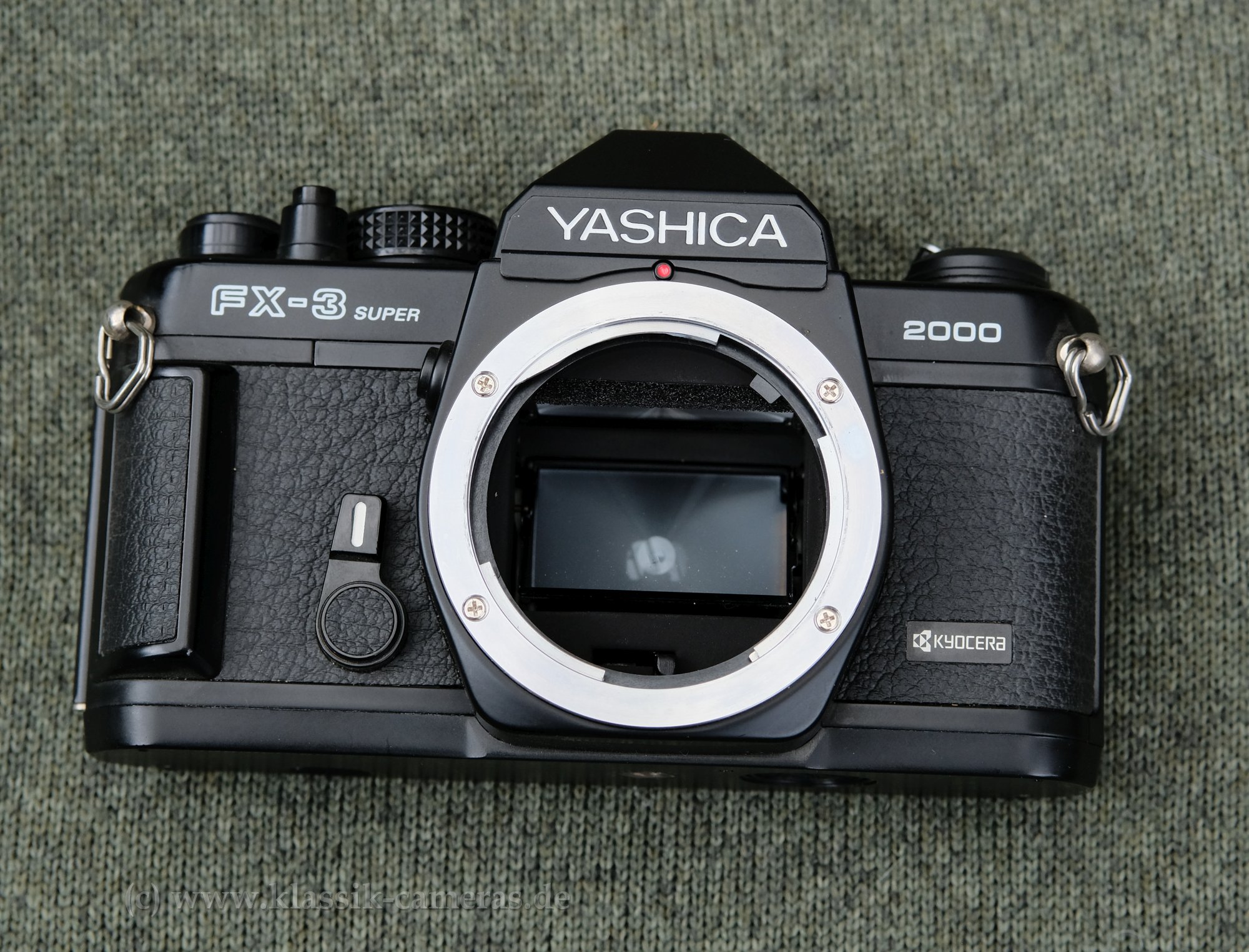

Yashica FX-3 super
            lens mount
No edges on the outer shells, upper and lower edge is "Contax-like" smoothly rounded. The dials are different from the upper camera, but on the same places. Shutter model is obviously the same.
When there is no real familary resemblance with the Contax 139 - picture here
- it has to do with some controls of mechanical cameras, like shutter speed dial, which can't be shifted from one side of the camera to another for mechanical reasons. All electronic triggered Contax C/Y cameras had the shutter speed dial on the left side (like the Contax Rangefinder camera). The reason why they had it on the "wrong" side, they kept to it even in the N-system (2005)? No clue.
But there is also no evidence that Cosina manufactured this camera. If you screw-off the baseplates of both you see very different chassis. Different parts, different assembly lines. This would not have made sense for one company. The controls are at (nearly) the same places for mechanical reasons in mechanical cameras.
I had used both Contax 139 and Yashica FX-3 and found no similarities. Sometimes it was even claimed that Cosina had manufactured the CONTAX S2.
I think, these rumors have a lot to do with the same shutter types build in these models. They "feel" similar from trigger and sound. Even the SEIKO and COPAL shutters - from two different companies - sounds similar and have about the same dimensions, for mechanical reasons and because the camera makers asked them to build them that way.
Anyway: In case of the NIKON FM10 or OLYMPUS OM2000 there is little to no doubt who manufactured it, because their baseplates are clearly engraved "COSINA JAPAN".

Continue with: VOIGTLÄNDER BESSA cameras made by Cosina
Back to Camera Homepage

Listing of Cosina made SLR’s from Yahoo’s Vintage Camera User’s group
Accordhing to Mr. Lozia (*not my oppinion*)

ARGUS        STL-1000
BAUER        RX1
BAUER        RX2
CANON        T60
CARENA        CX-300
CARENA        CX-500
CARENA        KSM-1
CARENA        KSM-2
CAVALIER    MSTL
CHINON        CE II
CHINON        CM3
CHINON        5000SE
CHINON        GAFL-ES
CHINON        CHINONFLEX
CHINON        CE-3
CHINON        CS-4
CHINON        CM-5
CHINON        CM-7
CHINON        CG-5
CHINON        CX II
CHINON        CP-X
CIMKO        LS-1
COSINA        C1
COSINA        C2
COSINA        CT-1
COSINA        CT-1EX
COSINA        CX-2
COSINA        CT-1A
COSINA        CT-1G
COSINA        CT-1 SUPER
COSINA        CS-1
COSINA        CS-2
COSINA        CS-3
COSINA        CT-4
COSINA        CT-7
COSINA        CT-7D
COSINA        CT-9
COSINA        CT-10
COSINA        CT-20
COSINA        CT-90
COSINA        EL SOLAR
COSINA        HI-LITE
COSINA        HI-LITE HDL
COSINA        HI-LITE EC
COSINA        HI-LITE 405
COSINA        CSM
ELICAR        MN-1
EXAKTA        TWIN TL
EXAKTA        HS-2
EXAKTA        HS-4
EXAKTA        HS-3
EXAKTA        HS-10
EXAKTA        HS-40
EXAKTA        KE-5
HAKING        HG1
HAKING        HG2
HANIMEX        DR-1
KENLOCK        KG1
MIRANDA        MS-1
MIRANDA        MS 2
MIRANDA        MEMOFLEX
NIKON        FM-10
NIKON        FE-10
OLYMPUS        OM-2000
PANAGOR        CT1EX
PANAGOR        CT90
PENTAX        P30T
PETRI        GX-1
PETRI        GX-2
PETRI        GX-3
PETRI        GX-4
PETRI        MF2
PETRI        MF3
PETRI        MF4
PETRI        MF101
PETRI        MF102
PETRI        MF103
PETRI        MF104
PORST        COMPACT REFLEX
PRINZFLEX    SUPER TTL
QUANTARAY    R400
QUANTARAY    RZ800
QUANTARAY    DZ-RZ
RICOH        XR-1
RICOH        KR-5
RICOH        KR-500
RICOH        KR-5 SUPER2
RICOH        SINGLEX TLS
RICOH        KR-10 SUPER
SEARS        SL2
SEARS        TLS
SEIMAX        SV7
SEIMAX        SV9
SOLIGAR        SC-1
TOPCON        AM-1
VIVITAR        220SL
VIVITAR        420SL
VIVITAR        650SL
VIVITAR        XV2
VIVITAR        XV3
VIVITAR        V2000
VIVITAR        V6000
VOIGTLANDER    VSL 43
YASHICA     FX-3 SUPER 2000
ZODEL        2MTL
